측정설비
11
강화/반강화 측정기 (2015 신형)

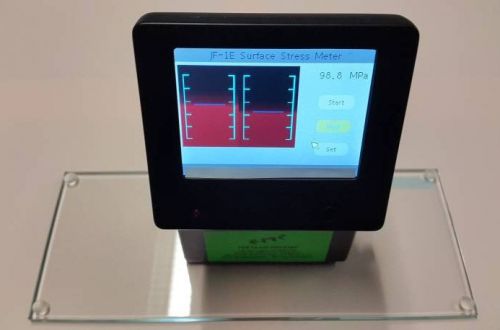

JF-1E Glass Surface Stress Meter (Portable) 열강화유리, 반강화유리와 열처리유리의 표면응력측정기 Instrument: * It is used to measure the surface stress of thermally toughened glass, heat strengthened glass and annealed glass.* PC based software provides accurate result quickly. * With PDA display option
Measurement principle: DSR ( differential Stress Refractometry ) Measure :* surface stress * tin bath glass side only ( UV light belongs to our supply ) * flat glass * bent glass with a minimum radius of 200 mm * measurement can be done in all positions * no limitations regarding glass thickness * easy operation and fast measurement with PDA display or PC notebook * result record and report with PC software
Range of stress: minimum surface stress 0, max: 180 MPa ( 26,000 PSI ) Resolution: : . +/- 1.5 MPa of full scale
Code and standard: ASTM C 1048, EN 12150-2, EN 1863-2 (The meter is calibrated according to ASTM C1279-13.)
Power supply and communication interface: USB 2.0 PDA display : 3.5” – 52 x 69 mm
PC software : Operating system, Windows 7 (32bit, with dot net framework 3.5)
Calibration plate :* included * with known surface stress for instrument verification * calibration can be done by end user as per instruction manual <Refractive index fluid : . RI=1.54>
Instruction manual : * included, with introduction on the instrument operation and software use. * maker data correspondence Stress value / Fragmentation figures, cracks number Maintenance : * by maker in case of parts damaged by accident
< JF-1 PC Software >The JF-1 PC software is designed for Jeffoptics product JF-1 Serial Surface Stress Meters. The software is based on PC. The software can calculate the stress value, calibrate the instrument and print report automatically. 관리자 2016.01.26
JF-1E Glass Surface Stress Meter (Portable) 열강화유리, 반강화유리와 열처리유리의 표면응력측정기 Instrument: * It is used to measure the surface stress of thermally toughened glass, heat strengthened glass and annealed glass.* PC based software provides accurate result quickly. * With PDA display option
Measurement principle: DSR ( differential Stress Refractometry ) Measure :* surface stress * tin bath glass side only ( UV light belongs to our supply ) * flat glass * bent glass with a minimum radius of 200 mm * measurement can be done in all positions * no limitations regarding glass thickness * easy operation and fast measurement with PDA display or PC notebook * result record and report with PC software
Range of stress: minimum surface stress 0, max: 180 MPa ( 26,000 PSI ) Resolution: : . +/- 1.5 MPa of full scale
Code and standard: ASTM C 1048, EN 12150-2, EN 1863-2 (The meter is calibrated according to ASTM C1279-13.)
Power supply and communication interface: USB 2.0 PDA display : 3.5” – 52 x 69 mm
PC software : Operating system, Windows 7 (32bit, with dot net framework 3.5)
Calibration plate :* included * with known surface stress for instrument verification * calibration can be done by end user as per instruction manual <Refractive index fluid : . RI=1.54>
Instruction manual : * included, with introduction on the instrument operation and software use. * maker data correspondence Stress value / Fragmentation figures, cracks number Maintenance : * by maker in case of parts damaged by accident
< JF-1 PC Software >The JF-1 PC software is designed for Jeffoptics product JF-1 Serial Surface Stress Meters. The software is based on PC. The software can calculate the stress value, calibrate the instrument and print report automatically. 관리자 2016.01.26
댓글수0
추천수0
조회수1974
9

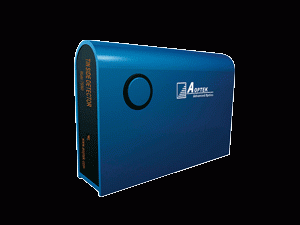

Tin면/Air면 판별기
Tin Side Detector(TS560) Tin Side Detector(TS380) Perfect tool for identifying which side of glass to print on (인쇄할면을 확인해주는 완벽한 장치) Fast &Easy with instant results (빠르고 쉽게 즉시 결과확인) Metal Shell &Portable Design (금속포장과 이동식 디자인) Powered by Lithium Battery (리튬건전지로 작동) Can be Recharged with Power Cord or With USB Interface (전선과 USB로 재충전사용) Longer Life-span, up to 2,000 hours (2,000시간까지 장시간 사용 수명) Helpful to glass processors: laminating, specialty coating, and printing (접합, 특수코팅 그리고 인쇄같은 유리가공에 매우 유용함) 관리자 2010.01.09
Tin Side Detector(TS560) Tin Side Detector(TS380) Perfect tool for identifying which side of glass to print on (인쇄할면을 확인해주는 완벽한 장치) Fast &Easy with instant results (빠르고 쉽게 즉시 결과확인) Metal Shell &Portable Design (금속포장과 이동식 디자인) Powered by Lithium Battery (리튬건전지로 작동) Can be Recharged with Power Cord or With USB Interface (전선과 USB로 재충전사용) Longer Life-span, up to 2,000 hours (2,000시간까지 장시간 사용 수명) Helpful to glass processors: laminating, specialty coating, and printing (접합, 특수코팅 그리고 인쇄같은 유리가공에 매우 유용함) 관리자 2010.01.09
8
강화로 블로어 진동 모니터링 시스템

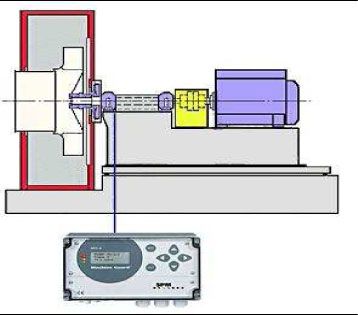

Preventive maintenance Tools for vibration control of fan VIBRATION MONITORINGA complete, low cost vibration monitoring system USE : You are Tempering Equipment user, with medium or big size of moto ventilators, fans, for tempering and cooling section airflow supply, so you are interested in this device.
This is a complete, low cost vibration monitoring system, an ideal guard for individual fans with vibration problems, in dead a system for preventive maintenance.
Measurement: vibration severity in mm/s according to ISO 2954
Functions:It has two adjustable trigger levels, ALERT has a continuous range of 2-20 mm/s, it can be set to trigger an alarm when general wear and minor defects have increased machine vibration to a level where maintenance is needed
ALARM is safeguard against dangerous vibration caused by damage or sudden out of balance. At a selected level 1-3 times the preset ALERT value it will trigger an external warning and / or automatic machine stop.
Input : from the vibration captor / transducer mounted on the bearing housing, 4 - 20 mA current loop Output: 2 relays contacts, separated, voltage free, 220V / 100 VA
Power supply : 220 VAC
SCOPE OF SUPPLY: 1 device encased in a dust & house tight box 1 captor / transducer, with setting bolt 1 three meters long low-noise coaxial cable captor 관리자 2016.01.26
Preventive maintenance Tools for vibration control of fan VIBRATION MONITORINGA complete, low cost vibration monitoring system USE : You are Tempering Equipment user, with medium or big size of moto ventilators, fans, for tempering and cooling section airflow supply, so you are interested in this device.
This is a complete, low cost vibration monitoring system, an ideal guard for individual fans with vibration problems, in dead a system for preventive maintenance.
Measurement: vibration severity in mm/s according to ISO 2954
Functions:It has two adjustable trigger levels, ALERT has a continuous range of 2-20 mm/s, it can be set to trigger an alarm when general wear and minor defects have increased machine vibration to a level where maintenance is needed
ALARM is safeguard against dangerous vibration caused by damage or sudden out of balance. At a selected level 1-3 times the preset ALERT value it will trigger an external warning and / or automatic machine stop.
Input : from the vibration captor / transducer mounted on the bearing housing, 4 - 20 mA current loop Output: 2 relays contacts, separated, voltage free, 220V / 100 VA
Power supply : 220 VAC
SCOPE OF SUPPLY: 1 device encased in a dust & house tight box 1 captor / transducer, with setting bolt 1 three meters long low-noise coaxial cable captor 관리자 2016.01.26
4
Scanning System for Non-contact and Continuous Measurement of Sheet Resistivity

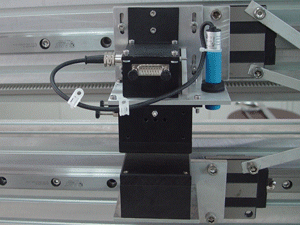

Scanning System for Non-contact and Continuous Measurement of Sheet Resistivity The scanning system measures the sheet resistivity of conducting layers as metalized coatings on insulating materials e.g. plastic foil, paper, glass, etc. without contact. 관리자 2010.01.09
Scanning System for Non-contact and Continuous Measurement of Sheet Resistivity The scanning system measures the sheet resistivity of conducting layers as metalized coatings on insulating materials e.g. plastic foil, paper, glass, etc. without contact. 관리자 2010.01.09
1
Low-E측정설비(Sputtering line상에 설치)

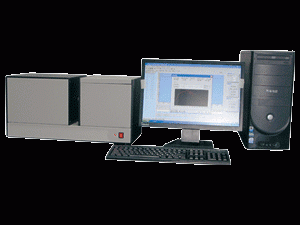

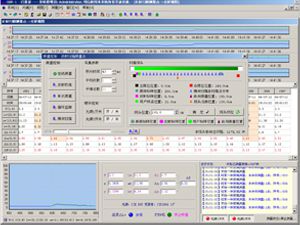

Low-E측정설비(Sputtering line상에 설치) Integrated Measurement System for Magnetron Sputtering LOW-E Glass Line (GSTV) It is an on-line system for continuously measuring the spectral reflectance of coating glass based on the optional configuration. Then calculate the color, chromatic aberration and homogenization etc. It is an on-line system, specially used inside vacuum chamber, to measure the spectral transmittance of each thin film layer. Spectral reflectance and transmittance based on the optional configuration. Then calculate the color, chromatic aberration and homogenization etc. 관리자 2010.01.09
Low-E측정설비(Sputtering line상에 설치) Integrated Measurement System for Magnetron Sputtering LOW-E Glass Line (GSTV) It is an on-line system for continuously measuring the spectral reflectance of coating glass based on the optional configuration. Then calculate the color, chromatic aberration and homogenization etc. It is an on-line system, specially used inside vacuum chamber, to measure the spectral transmittance of each thin film layer. Spectral reflectance and transmittance based on the optional configuration. Then calculate the color, chromatic aberration and homogenization etc. 관리자 2010.01.09
내용이 없습니다.
